Introduction

Notebook Port

iPod/iPhone Port

USB Port

Accessories

Innovation by Tlight Ltd. – The only all-in-one LED desk light with power supply for your mobile phones, notebooks and iPod, iPhone.
Major Specifications:
1. Nominal input voltage: 100~240V, 50/60Hz
2. Seven output voltages to suit your computer. Max. 65W except for 12V output
3. Ambient temperature for usage: -10 ~ +40℃
4. Ambient humidity for usage: 5% ~ 95%
5. Digital LED screen displays voltage output
6. Five seconds unlocking function to prevent accidental voltage change
7. Variety of worldwide approved AC plugs available
8. Cable length: 1370 mm
Major Features:
1. Charger with short-circuit, thermal-/over-voltage/ current protection. Effectively protects your computer.
2. Universal concept design, compatible for universal usage
3. EMI/EMC design inside, in accordance with all safety and EMC regulations
4. Energy-efficient, standby power consumption ≦1W

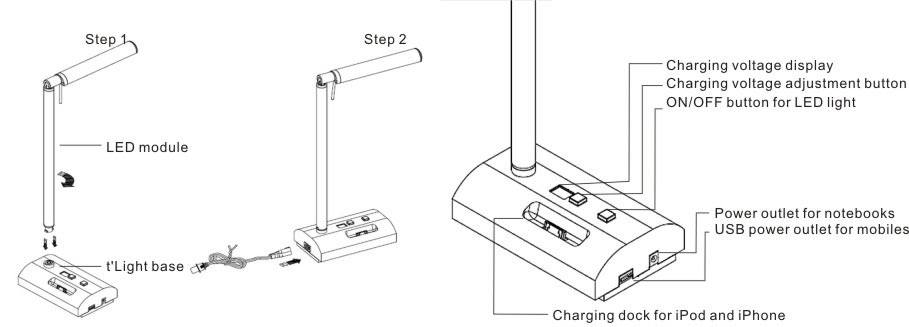

Quick Setup Instructions
Step 1: Place the base on the table and insert the LED module into the base as shown in the drawing above.
Gently turn the LED module clockwise by 90 degrees.
Step 2: Plug the tri-hole end of the power cord into the power jack of the t'Light base and insert the plug into
the wall socket.
Notices:
.Please do not apply excessive force when inserting the LED module into the t'Light base and while turning it until installed.
.Ensure the power cord is firmly plugged into the power jack on the t'Light base before inserting it into the wall socket.

Warranty Information
Tlight Ltd. limited 1-year product warranty
·Tlight Ltd. warrants this product against material defects and faulty workmanship during the warranty period. If a defect is discovered Tlight Ltd. will,
at its option, repair or replace the product free of charge, provided it is returned to the authorized Tlight Ltd. dealer from whom it was purchased
during the warranty period with transportation charges prepaid. Proof of purchase may be required.
·This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication. If the product has been modified without written permission of Tlight Ltd. or any Tlight Ltd. serial number has been removed or defaced.
·The warranty and remedies set forth above are in lieu of all others, whether oral or written, expressed or implied. Tlight Ltd. specifically disclaims any and all implied warranties including:
·Without limitation, warranties of merchantability and fitness for a particular purpose.
·No Tlight Ltd. dealer, agent or employee is authorized to make any modification, extension or addition to this warranty.
·Tlight Ltd. is not responsible for special, incidental or consequential damages resulting from any breach of warranty or any other legal theory including but not limited to:
Lost Profits, downtime, goodwill, damage to or reprogramming or reproducing any program or data stored in or used with Tlight Ltd. products.

Safe website purchase and fast EMS delivery worldwide
To ensure fast delivery and competitive pricing for all customers you can log on to our special website at www.tLight.cc to order series products. We will send out your goods as soon as possible by EMS delivery.
The t'Light is shipped in reinforced packaging for transportation-impact protection. Packaging dimensions are 39cm x 25cm x 7cm and its total weight does not exceed 1.5 kg to allow easy handling and shipping.

All logos, brands & product names are registered trademarks of their respective companies.
t'Light is patented and protected by internation allaw.
Specifications are subject to change without notice.

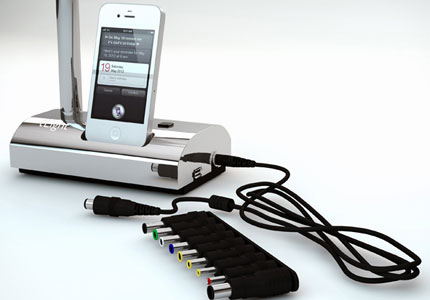

Compatible with most notebooks in the world
One of the t'light main functions is that of being a charger for many types of notebooks. The t'ligh is shipped with special
connection accessories, with which most notebooks in the market can be charged. You can easily choose the most
common output voltages right on your t'light.
Charging your notebook:
a. Make sure you select the correct voltage according to the rating output information on your notebook. Press the switch for more
than 5 seconds and select the voltage as needed.
b. Choose the appropriate jack according to the brand of your computer and connect it to the charging cable.


Table with adjustable voltages for your notebook:
Adjustable Output Voltage
12V 15V 16V 18V 19V 20V 22V 24V
4.50A 4.33A 4.06A 3.61A 3.42A 3.25A 2.95A 2.71A
Total output 65W MAX.except for 12V
Where can I find the correct output voltage!

You can find the correct output voltage on the label of the power
adapter supplied by your notebook
manufacturer. Look for the OUTPUT voltage value (e.g., 15V)
as shown in the picture. Then select the voltage on your t'Light
as described above.
Table with information on the relevant jacks to suit your notebook:
Jack Type Plug(OD) Plug(ID) Notebook Brands
A
B
C
D
E
F
G
H
I
 6.00mm
6.30mm
5.50mm
5.50mm
5.50mm
4.80mm
4.00mm
3.50mm
7.40mm		 4.00mm
3.00mm
2.50mm
2.10mm
1.70mm
1.70mm
1.70mm
1.35mm
5.00mm		 SONY/FUJISTU/SAMSUNG
TOSHIBA/NEC
HP/IBM/DELL/ACER/TOSHIBA/ASUS/COMPAQ/DELTA/AOPEN/FUJISTU/LENOVO
IBM/HP/NEC/TOSHIBA/NEC
ACER
ASUS/HP/NEC/DELTA/COMPAQ
BENQ/ACER/SONY
SHARP/DELL
HP/DELL

Special Remarks:

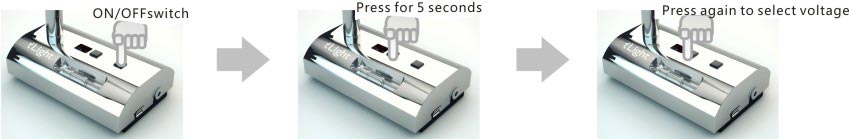

1. For safety purposes a 5 seconds unlocking function has been implemented to prevent accidental changes to the output voltage.
To change the voltage, the switch needs to be pressed for more than 5 seconds. Then the required voltage can be selected.
2. All terminals have over-load protection and a self-recovery function, which resumes charging after over-loading has been eliminated.
Compatible with iPod and IPhone

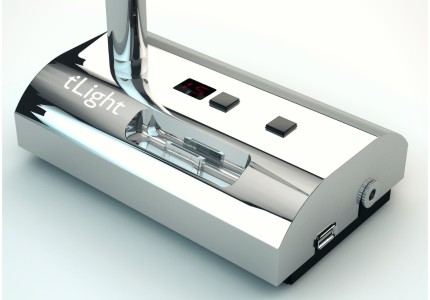

The t'Light features a special port for charging most iPod and iPhone products from Apple Inc.
The port is located on the upper part of the t'Light base, which is made of metal-alloy for longer durability,
high reliability and user-friendly operation.
Charging your iPod or iPhone:
Simply put the iPod or iPhone into the port on top of the t'Light base. Charging will start automatically.
The charging port is compatible with:

·iPod touch
(2nd, 3rd and 4th generation)
·iPod classic
·iPod with video
·iPod nano
(2nd, 3rd, 4th,5th and 6th generation)
·iPod with color display		 ·iPod mini
·iPod with dock connector
·iPod with Click Wheel
·iPhone 4
·iPhone 3GS
·iPhone 3G
·iPhone


Made for iPod,” “Made for iPhone,” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone,
“respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod,
iPhone, may affect wireless performance.

iPad, iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

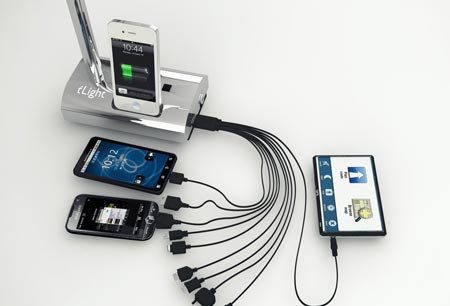

The t'Light features one universal USB output port. With the included connection accessories,
the t'Light can charge about 95% mobile phones. Many of them are popular models and famous brands.
Compatible mobile phones include: most MOTOROLA®, NOKIA®, HTC®, SonyEricsson®, SAMSUNG Anycall®, Lenovo®, MEIZU®,
PHILIPS®, Acer®, LG®…
Note that several mobile phones can be charged simultaneously.
Charging your mobile phone:
1. Choose the appropriate connector for your mobile phone
from the included multi-plug USB cable or use the USB cable
provided by your mobile manufacturer.
2. Plug the USB cable into the USB port on the t'Light base.
Charging will start soon.

You can charge several mobile phones simultaneously as long as
the total current does not exceed 1A.
Should the current consumption exceed 1A the t'Light will
automatically cut off the power supply. There is a self-recovery
feature and charging will continue when current consumption is
within the specified limit. Should the power supply be cut off,
you may have to disconnect one of your mobile phones to have
the charging sequence resume.

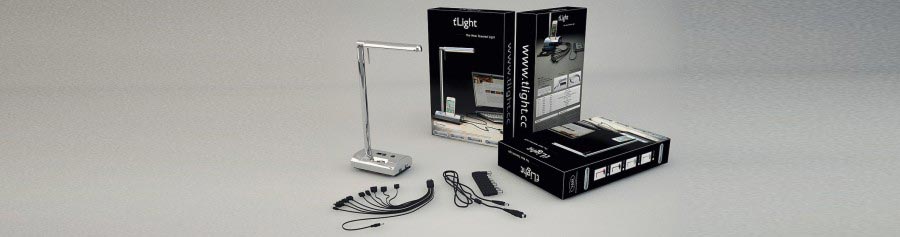

With these accessories, you can use the t'Light conveniently and easily

The t'Light comes with a number of jacks, plugs and power cables
according to the different requirements of various countries.
Please check the contents carefully when opening the package.

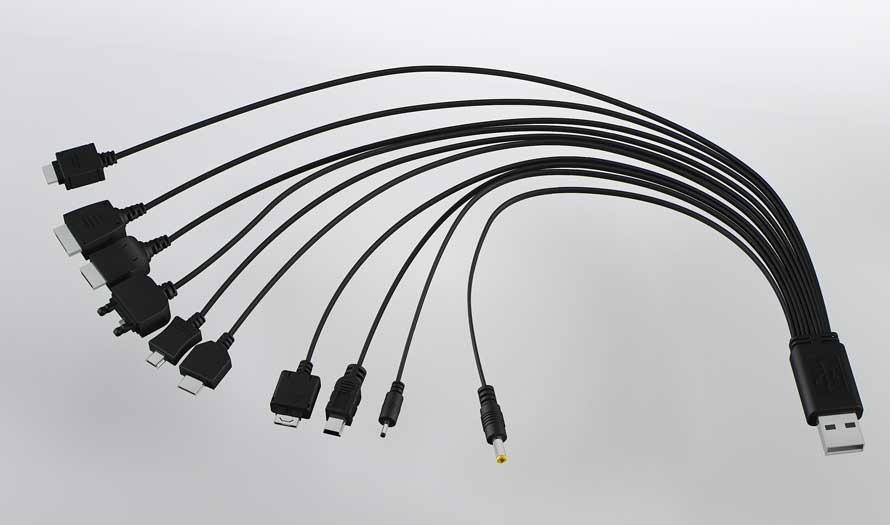

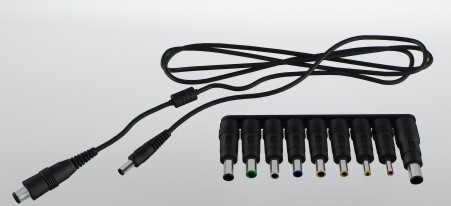

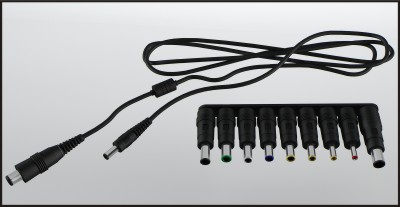

USB cable for charging a wide range of mobile phones Connectors for most notebook brands

Please double-check that the following contents are included in your t'Light product
package. In case an article should be missing, please contact us at support@tlight.cc
ltem Article description Qty
1 t'Light base 1
2 LED module 1
3 Power cord 1
4 Charging cable for notebooks 1
5 Jack accessories for notebooks 1
6 USB charging cable for mobiles 1
7 A4 Instruction sheet 1
