Description:

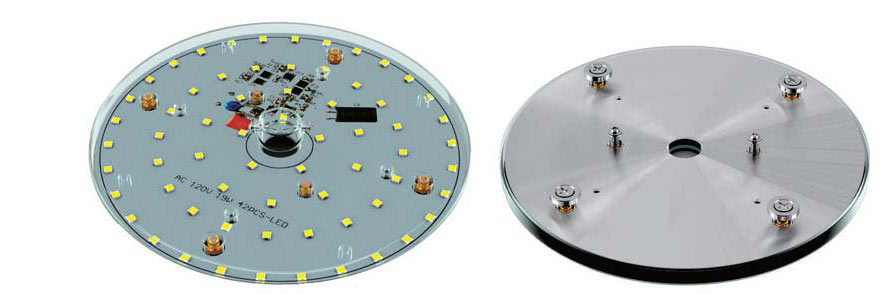

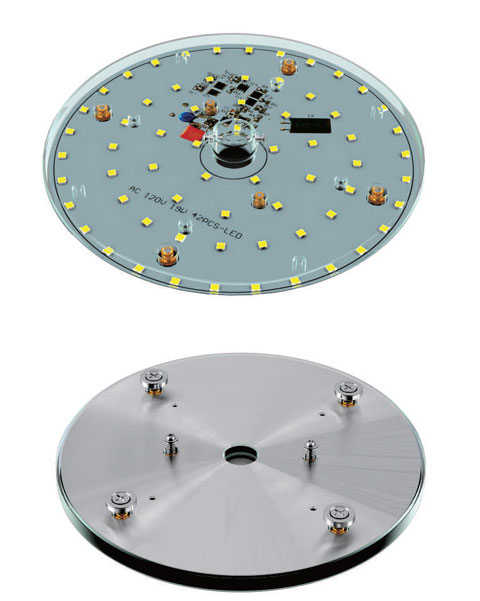

tLight Multi Purpose LED Retrofits (MPLR) are desinged to provide the lighting industries with a revolutionary solutation to upgrade to the latest LED technoligy. With our patented designs, most of the existing ceiling fixtures, pendants, portable lamps, torhcieres are easily to adapt our LET Retrofit without wiring and screwing. Those fixtures can be truned to be LED fixtures just as easy as changing a light bulb. With our unique designs, most of the ceiling fixtures, pendants do not need to have wiring and screwing for the electronical parts such as power supply, sockets, even the LED modules, it is a big steps of saving for the production cost and time. We call this is a revolution as with our MPLRs, the lighting factories are not longer needed to assemble the lighting fixtures to be lighting fixtures, in fact, they only need to pack all the lighting parts in a box and ship to the customers, and those parts are installed with a MPLR, then it becomes a complete lighting fixture. This is not just saving the production time and cost, but also allow the distributors the flexibility to stock less quantity of products. Furthermore, it is also allowed the end users the flexibility to select the suitable light that they wanted which all other LED fixtures can not be provided. Can you image there are other ways better and cheaper than using our MPLRs?

Features:

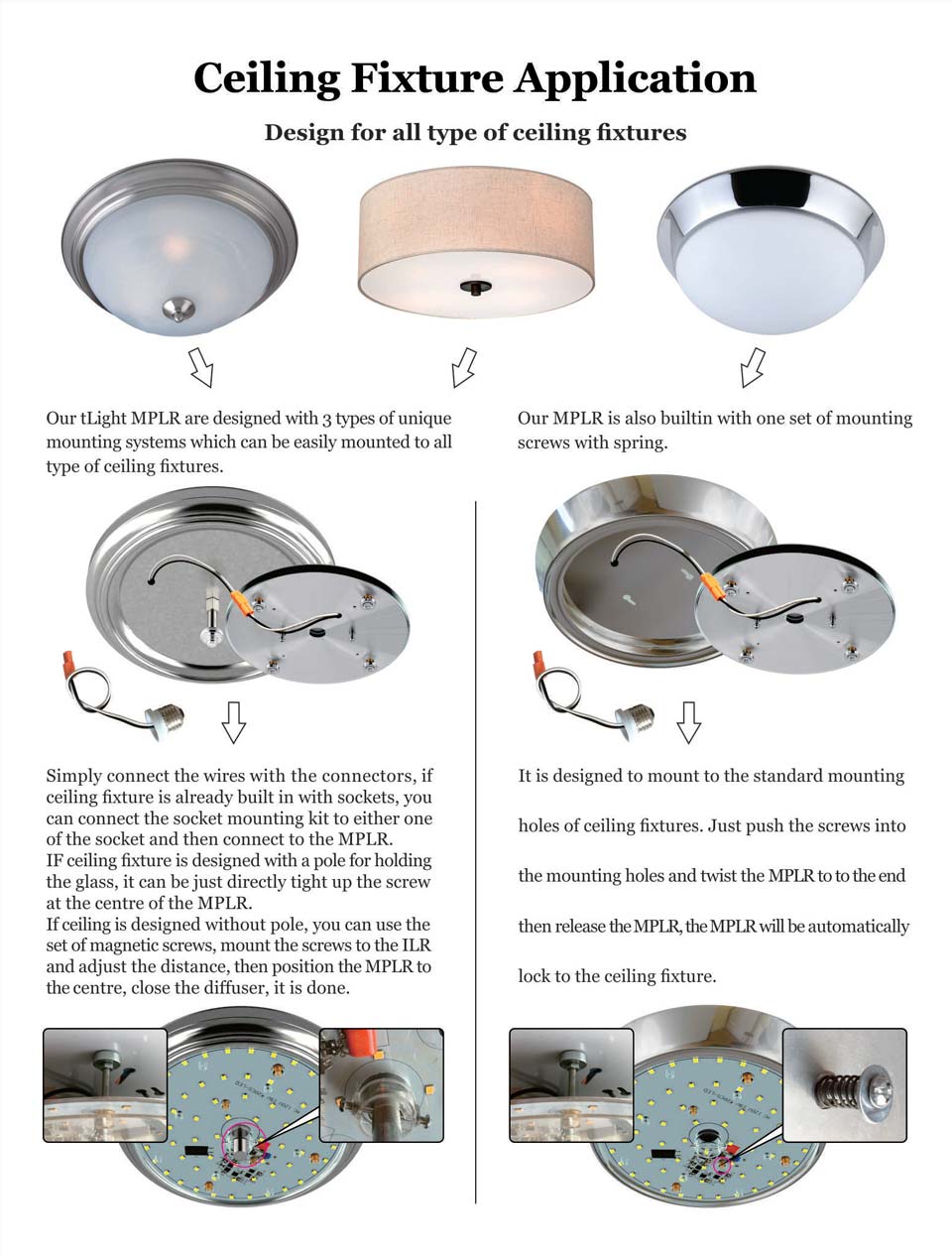

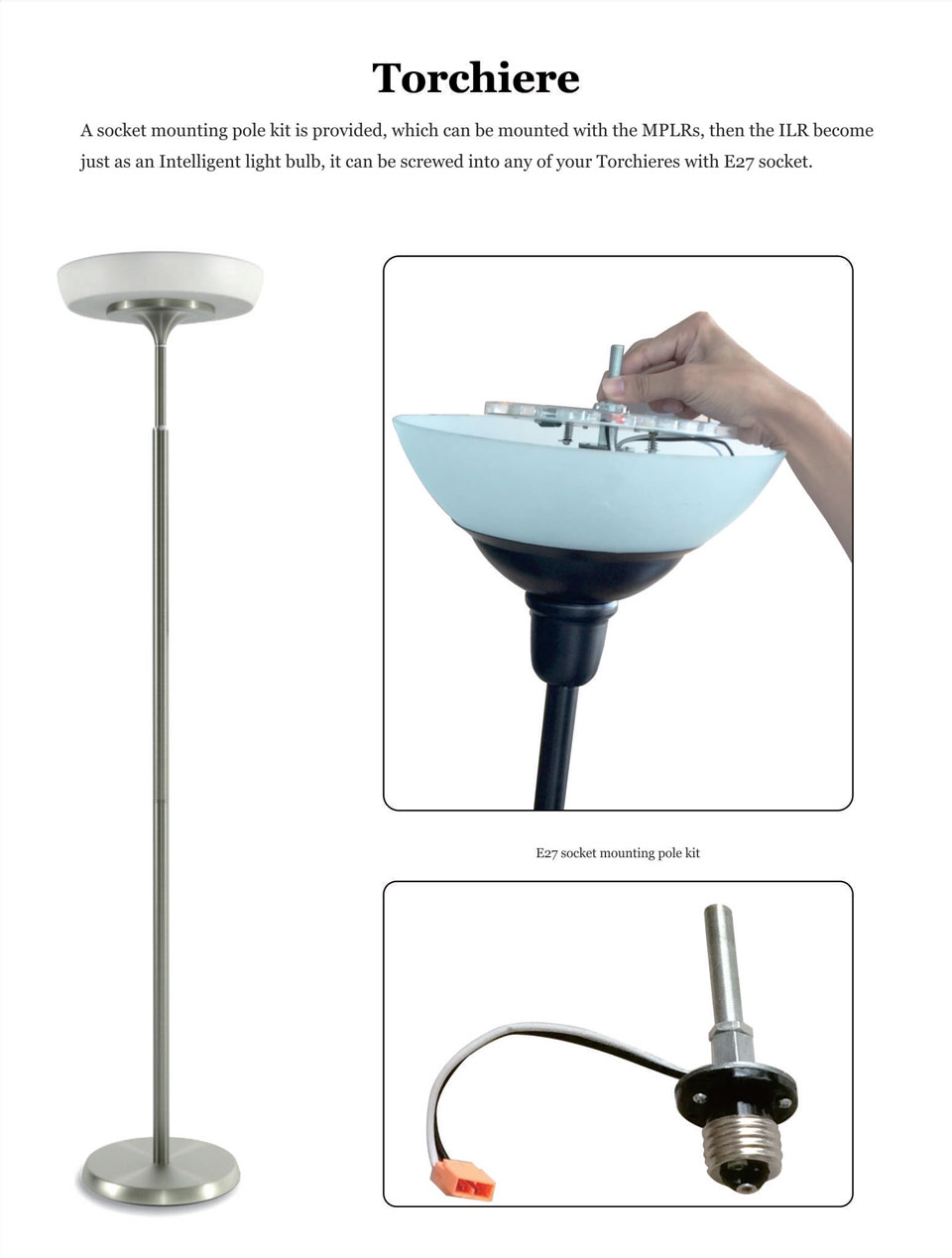

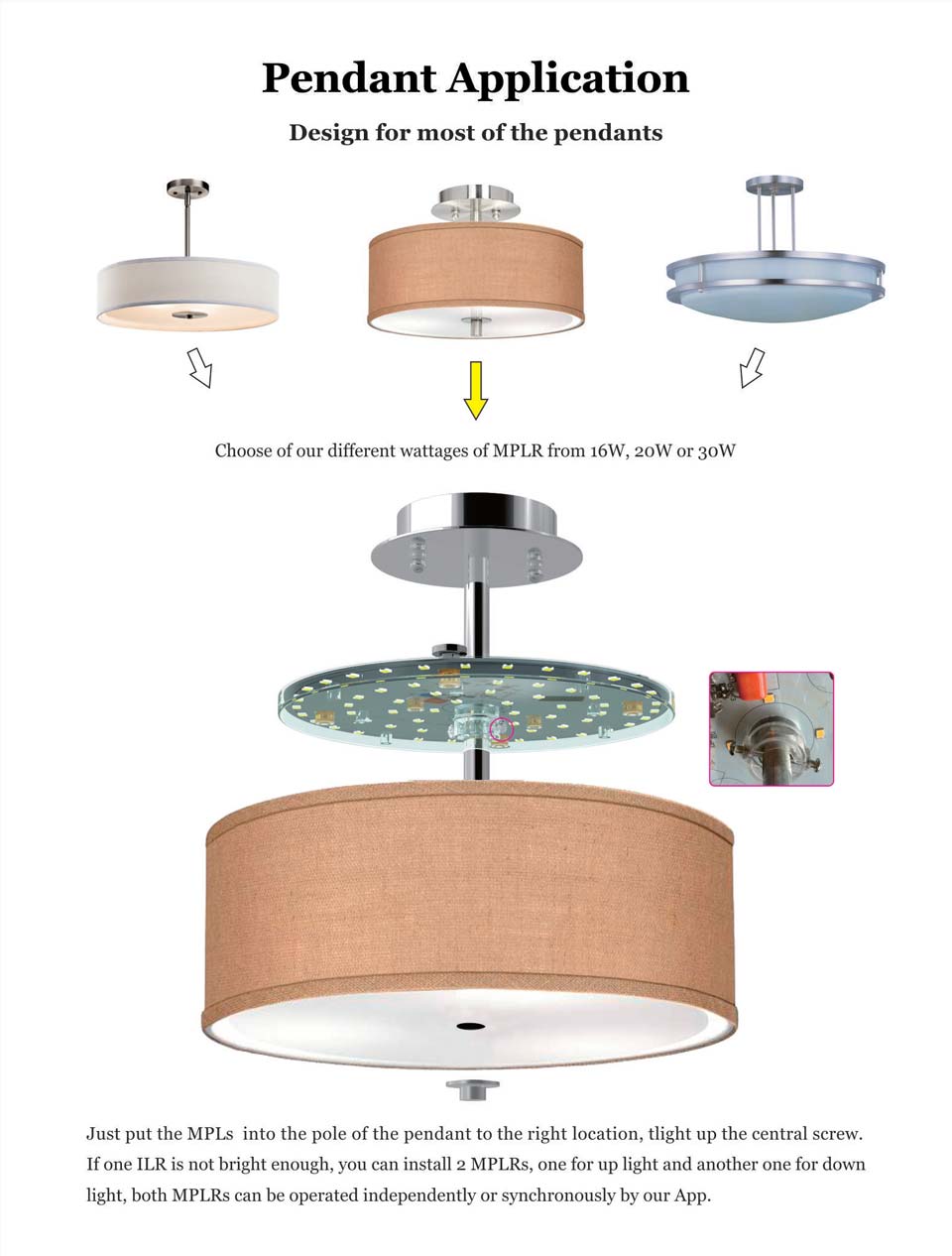

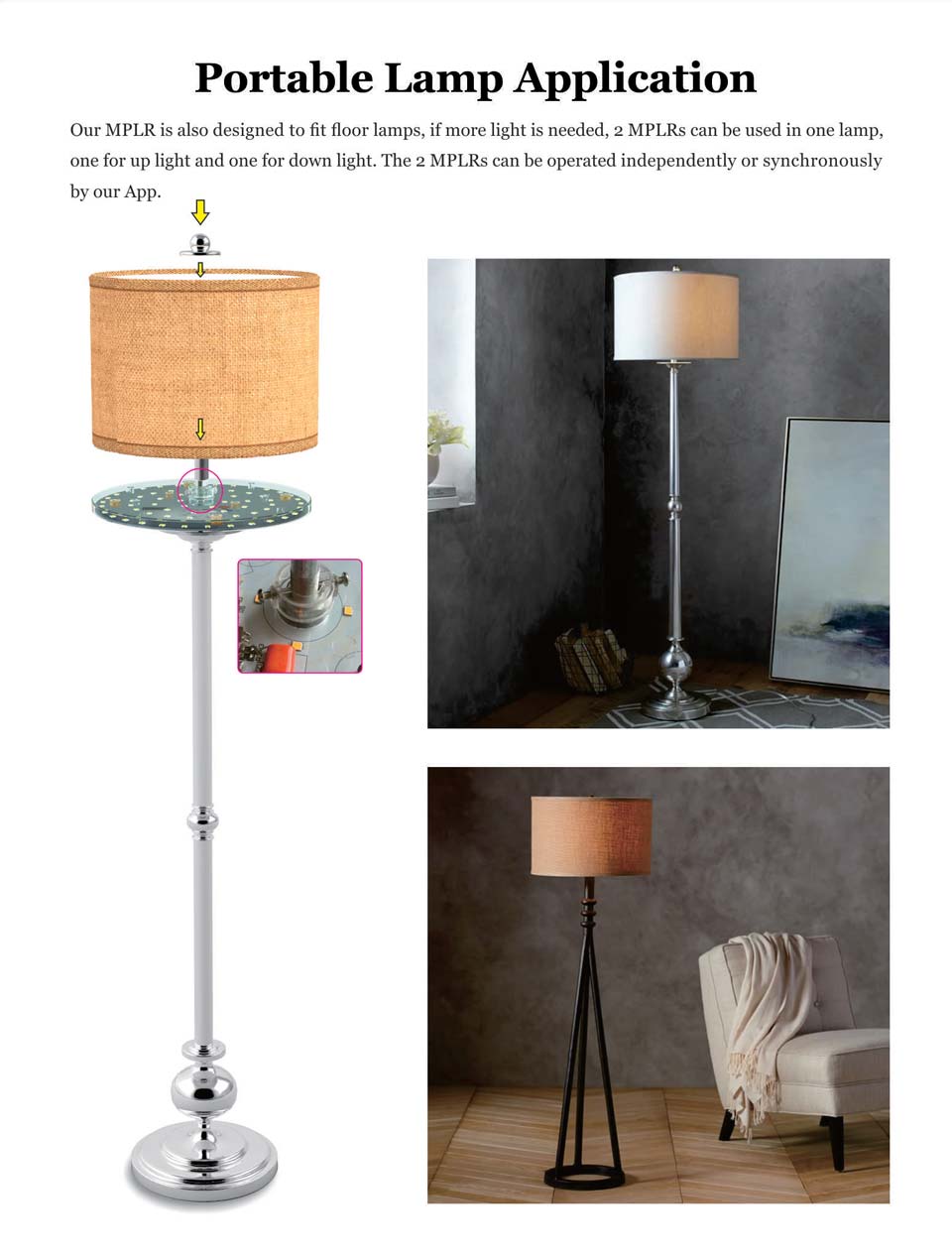

Multiple mounting system provided, with unique patented designs, allow users to plug & play. No competent electrician is required for installation#. As easy as installation of a light bulb. "True Color" 93 CRI one of the light source closest to the natural sunlight. Multiple
wattages available from 16W to 25W. Dimmable and compatible with the major dimmers in the market. DOB design with LM80 8000 hours LED chips. Suitable for Industrial and Residential Fixtures. Suitable for Ceiling Fixtures, Pendants, Floor Lamp, Torhchiers. 5 years warranty.

Control & Dimming:

120V or 240V AC 50/60 Hz
TESTED WITH THE FOLLOWING DIMMERS
Leviton: IPI10, DVCL153P-WH, CT-600P-BL, MACL153M, CPL06-10Z,
Lutron: 6674-P, VPM10-iL, 6672-L, 6681, CTCL-153PD, S-600P,
CF1000P, CTELV-303P, LGCL-153PL, VP1-6-iL, PD-6WCL, VPM10, MACL153M
Cooper: DLC03P, Legrand: 341107-01/15

Safety & Qualifications:

CE,FCC,ETL,Energy Star. CEC Pending
Patent No.: 201621098755.0 LED_Retrofits

LED_Retrofits LED_Retrofits LED_Retrofits LED_Retrofits
The Most Talented Light


MC13163

MC13193

MC13253

  • Input Wattage:
  • Efficacy (lm/W):
  • Delivered Lumens(lm):
  • Equivalent Wattage:
  • Height:
  • Weight(g):
  • Diameter:
  • 16W
  • 80
  • 1250
  • 75W INCAND
  • 0.78"(20mm)
  • 110
  • Φ5.7"(144mm)
  • 19W
  • 82
  • 1520
  • 120W INCAN
  • 0.78"(20mm)
  • 170
  • Φ7.2"(185mm)
  • 25W
  • 91
  • 2200
  • 180W INCAN
  • 1.25"(32mm)
  • 300
  • Φ7.2"(185mm)
  • Input Voltage Range(V):
  • Color Rendering Index(CRI):
  • Color Temperature(CCT):
  • Dimming Compatible:
  • 0-10V Dimming:
  • Compatible Dimmers:
  • Beam Angle:
  • Power Factor:
  • MAX THD(%):
  • Ambient Temp(F):
  • LM-79:
  • LM80(8000Hours):
  • Safety:
  • Fixtures compatible:
  • Life:
  • Warranty:
  • Energy Star®:
  • LED Lighting Facts®:
  • 100~240V(50/60Hz)
  • >82
  • 3000k (Optional 2700K/4000K/5000K/6400K)
  • Yes, SCR Dimming
  • Yes, Digital Dimming
  • Leviton: IPI10, DVCL153P-WH, CT-600P-BL, MACL153M, CPL06-10Z,
    Lutron: 6674-P, VPM10-iL, 6672-L, 6681, CTCL-153PD, S-600P,
    CF1000P, CTELV-303P, LGCL-153PL, VP1-6-iL, PD-6WCL, VPM10, MACL153M
    Cooper: DLC03P, Legrand: 341107-01/15
    # Contact us for the latest compatible availability of the dimmer
  • 120
  • 0.9
  • 34
  • (-4F~110F)(-20℃~43℃)
  • Yes
  • Yes
  • ETL/CE
  • Ceiling, Pendant, Portable Lamp, Torhciere
  • 35000 Hours
  • 5 Years
  • Yes
  • Yes
