Description:

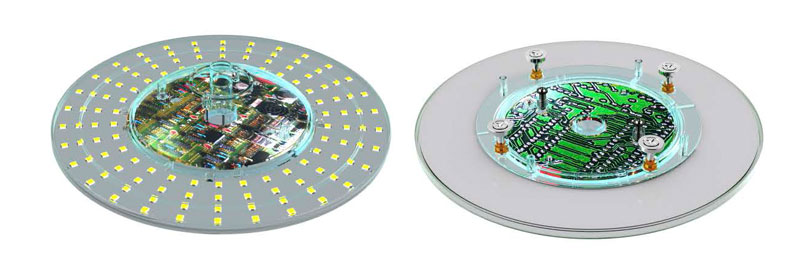

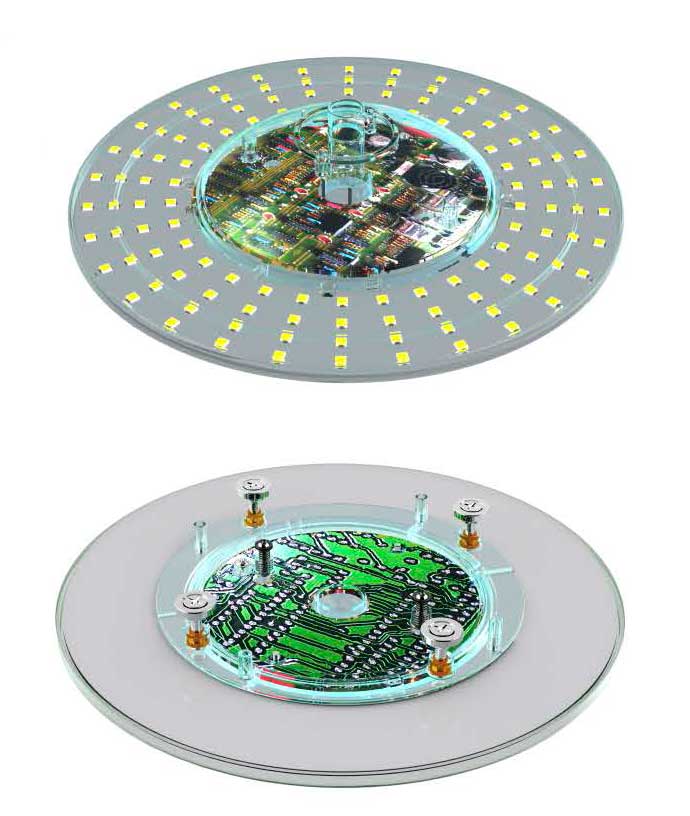

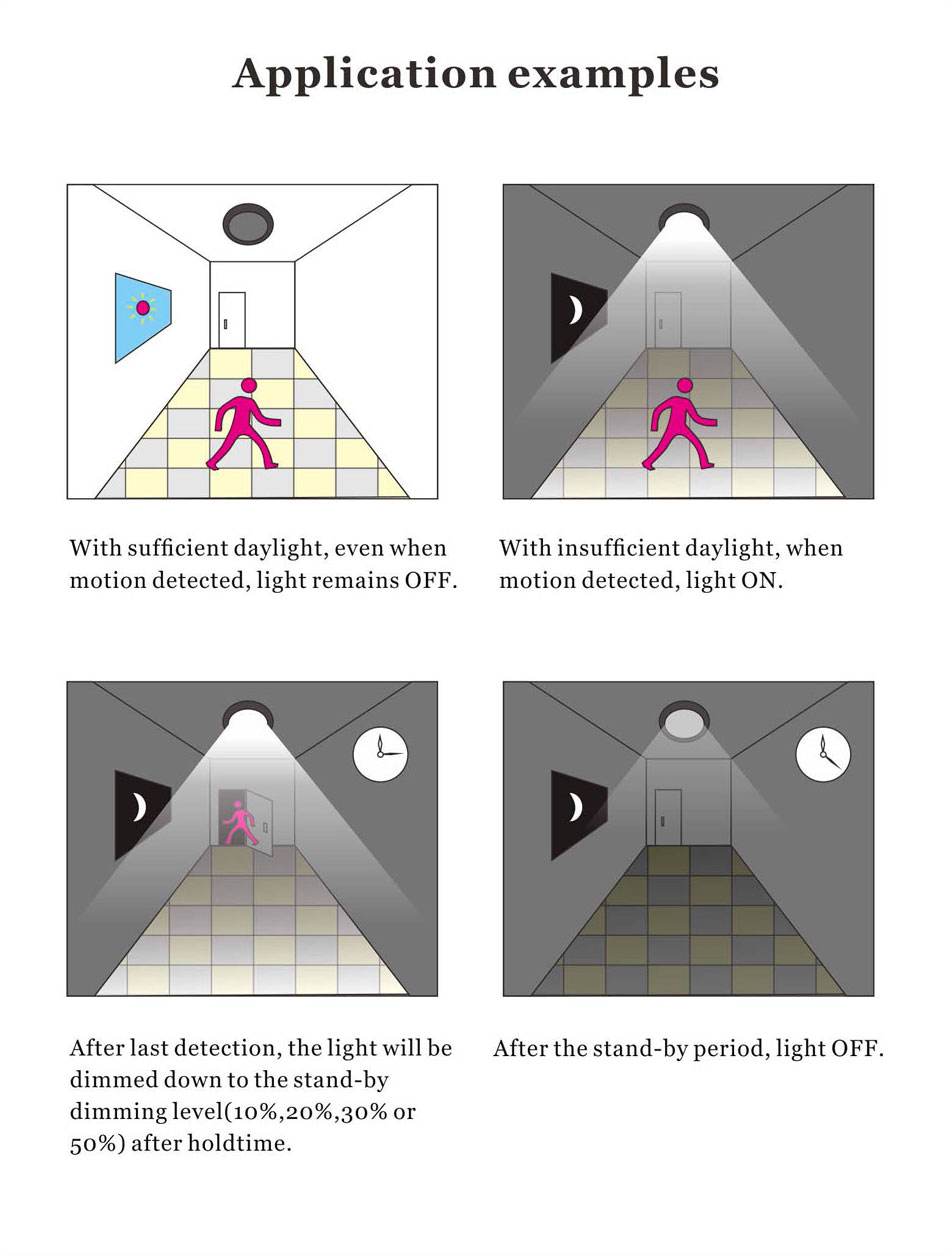

tLight Microwave LED Module & Retrofit (MLMR) are desinged to provide the lighting industries with a revolutionary solutation to upgrade to the latest LED technoligy. With our patented designs, most of the existing ceiling fixtures, wall fixtures & pendants are easily to adapt our MLMR without wiring and screwing. Those fixtures can be truned to be intelligently managing LED fixtures, it is just as easy as changing a light bulb. Fixtures with our MLMRs are not longer needed to trun on or off, as far as there is people, it will be turned on automatically within less than one second and when there is no one, it will be either turned off or set to a dimming preset level, this is adjustable according to users’ requirements. It is superior convenience and energy saving. MLMR is also built with photo control, therefore, when there is enough light or during day time, even when people are detected, the MLMR will remain at off mode. It is just the perfect for lighting applications that require illumination 24/7. With our technology & design, energy and light are perfectly to be used and controlled at the best way for people’s life.

Features:

Multiple mounting system provided, with unique patented designs, allow users to plug & play. “True Color” 93 CRI one of the light source closest to the natural sunlight. Invisible Microwave Sensor for intelligently managing LED Light. Adjustable via remote control for sensitivity, duration of time at high light level, duration of time at high light level before dimming to low, duration of time at low light level before dimming to off, daylight hold-off, and the dimmed light level. Multiple
wattages available from 13W to 40W. Suitable for Industrial and Residential Fixtures. Suitable for Ceiling Fixtures, Wall Fixtures, Pendants. 5 Years warranty.

Input Voltage:

100V to 277V, AC 50/60 Hz
Patent No.: 201621098755.0


LED_Retrofits LED_Retrofits
The Most Talented Light


MC4313

MC4316

MC4323

MC4330

MC4340

MC4340D

  • Input Wattage:
  • Delivered Lumens(lm):
  • Equivalent Wattage:
  • Diameter:
  • Height:
  • Weight(g):
  • 13W
  • 1625
  • 100
  • ø6.8" (175mm)
  • 2.12" (54mm)
  • 300
  • 16W
  • 2000
  • 120
  • ø6.8" (175mm)
  • 2.12" (54mm)
  • 300
  • 23W
  • 2875
  • 200
  • ø6.8" (175mm)
  • 2.12" (54mm)
  • 300
  • 30W
  • 3750
  • 250
  • ø8.5" (215mm)
  • 2.12" (54mm)
  • 350
  • 40W
  • 5000
  • 300
  • ø8.5" (215mm)
  • 2.12" (54mm)
  • 350
  • 40W
  • 5000
  • 300
  • ø8.5" (215mm)
  • 2.12" (54mm)
  • 350
  • Input Voltage Range(V):
  • Efficacy (lm/W):
  • Color Rendering Index(CRI):
  • Color Temperature(CCT):
  • Standby mode output:
  • Detection range:
  • Daylight threshold:
  • Shut off delay time:
  • Start time:
  • Detection angle:
  • Microwave frequency:
  • Microwave power:
  • Beam Angle:
  • Power Factor:
  • Output LED current :
  • Output LED voltage:
  • MAX THD (%):
  • Ambient Temp. (°C):
  • 100~240V(50/60Hz)
  • 120
  • 82 or 90 version available
  • 2700-6400K available
  • 0% to 50% of output (adjustable#, preset at 20%)

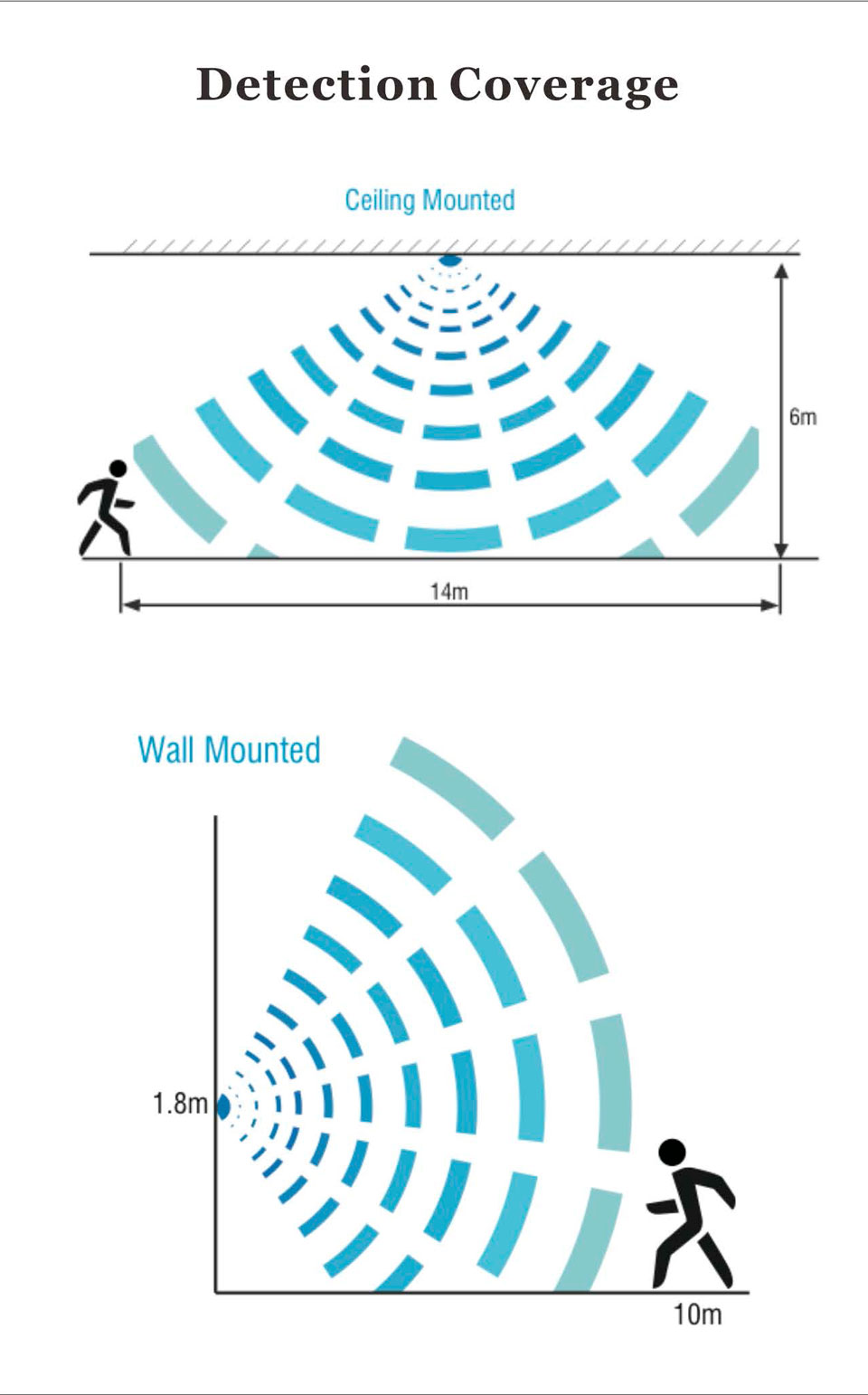

  • 6.5' to 55', adjustable (2 m to 14 m adjustable# preset at 6 m)
  • 2Lux /10Lux /50Lux/Disable (adjustable# preset at 10Lux)
  • 0-15 mins (Adjustable#, preset at 3 mins)
  • < 1 second
  • 30-150 degree
  • 5.8GHz±75MHz
  • <0.3W
  • 120°
  • 0.9
  • 300mA/350mA
  • 24V~52V
  • 12
  • -20 to 50 °C
  • LM-79:
  • LM-80 (9000 hours):
  • Abnormal protection:
  • Safety standard:
  • IP Rating:
  • Safety:
  • Fixtures fitting:
  • Life (Hours):
  • Warranty: (Years):
  • Energy Star®:
  • LED Lighting Facts®:
  • Pending
  • Yes
  • SCP:Auto recovery,OVP,OCP,OTP
  • EN61347-1 EN61347-2-13 EN60598-1, UL1598C, UL8750
  • IP21, Damp Location
  • ETL/CE/FCC/DLC
  • Ceiling, Pendant, Wall, Portable
  • 50,000 hours
  • 5 years
  • Pending
  • Pending
